MEASUREMENT

DMM /ATE

INTRODUCTION

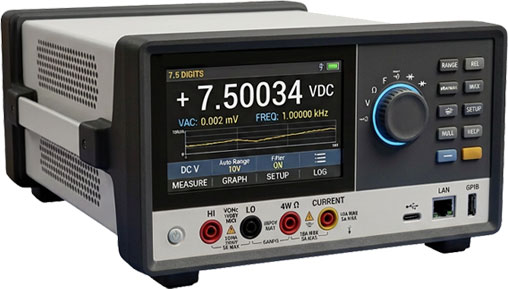

Precision Current Measurement for DMM Our current sensing resistors and precision resistors provide leading performance among comparable products, enabling high-performance measurement while reducing overall system cost.

REQUIREMENTS FOR RESISTORS

Current Sensing Resistors

Stable and reliable high-precision current measurement
Outstanding long-term stability
Excellent product consistency

Precision Resistors

Outstanding long-term stability and high humidity performance
Excellent product consistency

Current Sense

Applicable Products

PCSR2512

Current Sensing Resistors

10mΩ-100mΩ 1W ±0.1%-±5% ±15ppm 2512

Guarantee Resistance Accuracy

Applicable Products

PZFR

Precision

5Ω-125KΩ 0.2W-0.75W ±0.01% ±2ppm 0603-2512

PTFR

Precision

10R-5.1MR 0.06W-0.25W +/-0.01% +/-5ppm 0402-1206

MMFR

Precision

10Ω-1MΩ 0.25W-1W ±0.05% ±5ppm
